EGT Measurement

Looking to measure exhaust gas temperature? We now carry a line of EGT measuring equipment, from the TC-4 thermocouple interface to temperature probes to the mounting hardware. All probes are a K-type thermocouple with a 8′ lead. The differences is that the “Black Stinger” probes have an open end for faster reaction time, while the “Red Avenger” probes have a closed tip for better protection.

Showing all 8 results

  • CAN-EGT 8 Channel Thermocouple Interface

    From: $350.00

    The CAN-EGT unit allows you to monitor up to 8 K-type thermocouples and up to 8 Innovate wideband devices over an Innovate Log Chain, and can transmit the data to a MicroSquirt, MSPNP, or MS3-Pro over the CAN bus, so you don't use up any analog inputs fo...

    Read more
  • Innovate TC-4 4 Channel Thermocouple Interface – 3784

    $129.00

    The Innovate TC-4 is a 4 channel thermocouple interface. It's perfect for determining your fuel distribution where running a collection of wideband sensors could be prohibitively expensive. Works with type K thermocouples, sold separately. You can log the...

    Read more

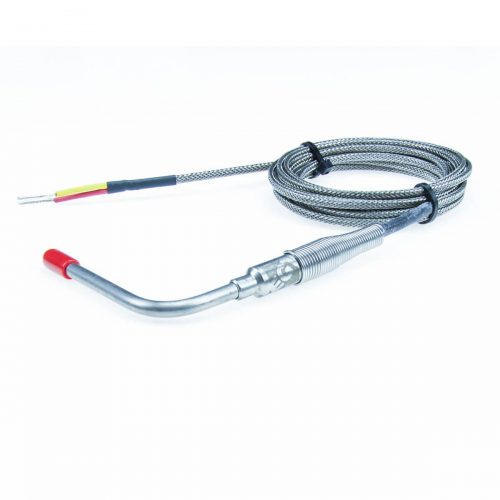

  • Black Stinger Open Tip EGT Probe

    $73.00

    Measure your exhaust gas temperature with this open tip EGT probe. It is a K type thermocouple with an 8 foot lead. Works with our CAN-EGT or Innovate TC-4, LMA-3, or DL-32, and many other temperature devices. Diameter is 3/16".

    Add to cart

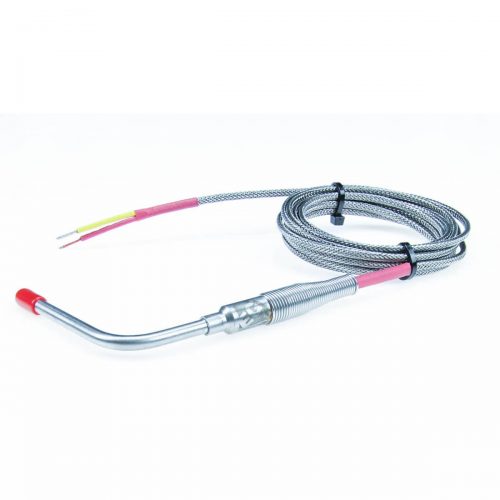

  • Red Avenger Closed Tip EGT Probe

    $62.00

    Measure your exhaust gas temperature with this enclosed tip EGT probe. It is a K type thermocouple with an 8 foot lead. Works with our CAN-EGT, Innovate TC-4, LMA-3, or DL-32, and many other temperature devices. Diameter is 3/16".

    Add to cart
  • Stainless Steel EGT Weld-In Compression Fitting

    $14.85

    Got a stainless steel exhaust? Here's what you need to install an EGT probe in it. Weld this compression fitting into your headers or exhaust pipe. It holds a EGT probe securely in place. Compression type fitting provides a leak-free seal that holds up at...

    Add to cart

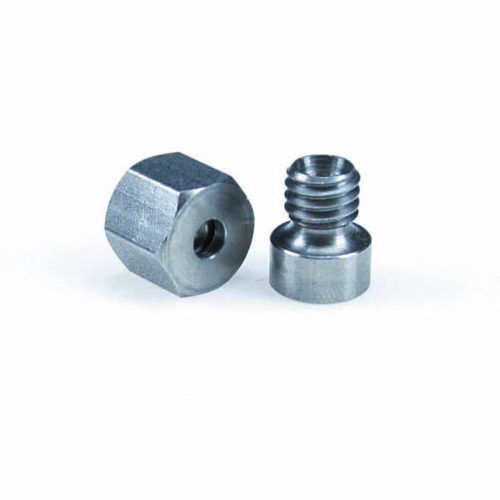

  • Stainless Steel EGT 1/8″ NPT Compression Fitting

    $14.10

    Need a weld-free way to add EGT fittings to a cast iron manifold? Drill and tap it for 1/8" NPT pipe thread and bolt one of these in! Works with our Red Avenger and Black Stinger thermocouples.

    Add to cart

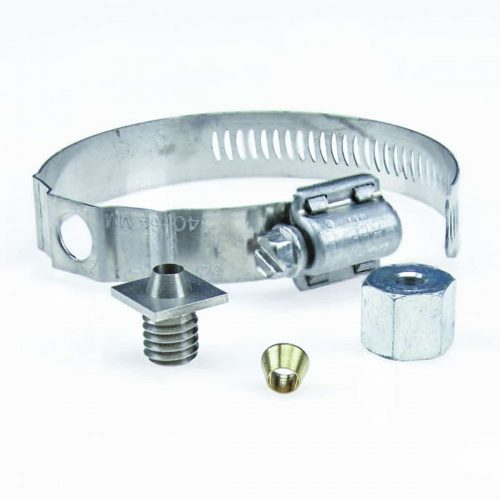

  • EGT Clamp and Fitting

    $16.25

    Attach an EGT probe to your exhaust without welding using this worm drive clamp and compression fitting. Fits 1.56" to 2.5" OD tube headers or exhaust pipes, with a 3/16" compression fitting for use with our EGT probes. Made from stainless steel.

    Add to cart

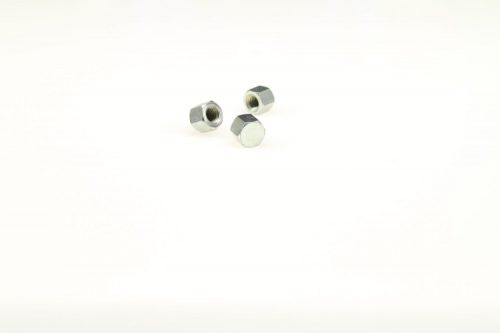

  • EGT Port Cap Kit – Package of 3

    $11.25

    Removing your EGT probes? Seal the hole with these cap kits. Sold in packs of 3.

    Add to cart
